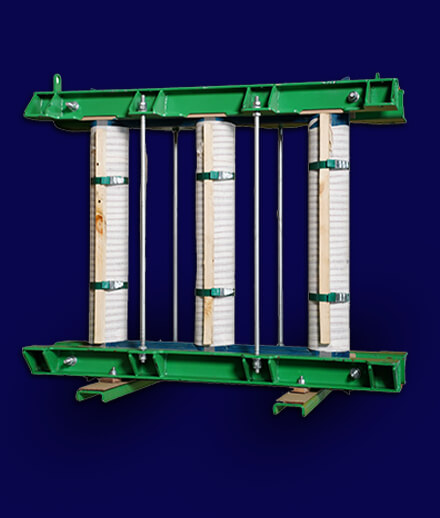

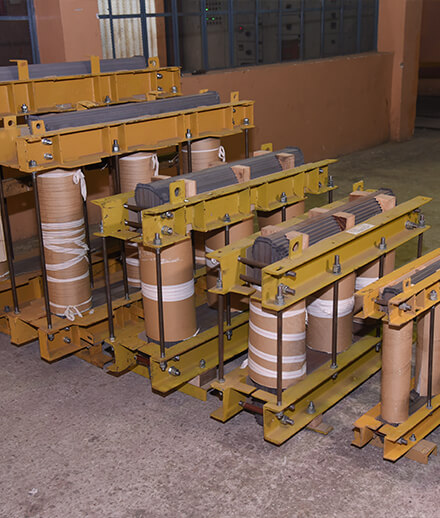

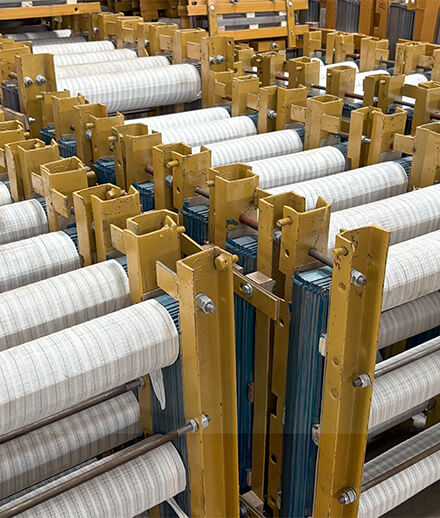

CORE ASSEMBLY
We specialize in the manufacturing of complete core assemblies from 10 kva to 10 MVA, integrating CRGO laminations with high-quality hardware, channels, and insulation materials. Our assemblies are produced under strict adherence to customer drawings and specifications. All components are aligned and clamped with precision, ensuring excellent dimensional stability, minimal vibration, and reliable magnetic performance. Every assembly is tested before dispatch to meet mechanical and electrical specifications.
Ready-to-Use Assembly
Supplied in fully assembled condition for direct integration into transformer manufacturing.
High-Grade Material
Made using top-quality CRGO laminations for optimum magnetic efficiency.
Clamping and Frame Integration
Supports precise alignment and rigidity to maintain performance under load.
Technical Specifications
| Parameter | Details |
|---|---|
| Core Material | CRGO |
| Thickness | 0.23mm / 0.27mm / 0.30mm |
| Assembly Type | Mitred |
| Frame & Clamping | Customizable based on client drawing using Sheet Metal or Channel Core Clamps |
| Finish | Anti-rust Coating (on request) |
