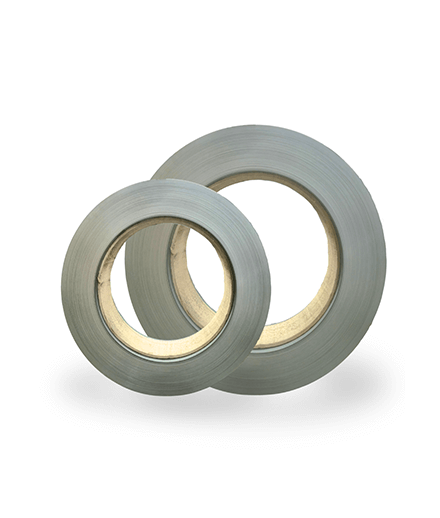

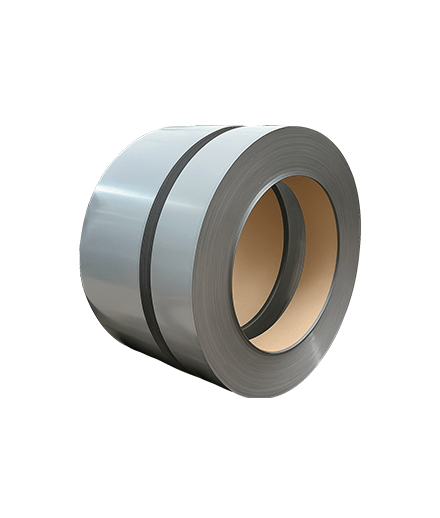

CRGO Slit Coil
Katyaini Products offers precision-slitted CRGO coils processed on advanced automated slitting lines. We handle a wide range of coil widths and grades, tailored to client-specific applications. Our slitting processes ensure clean edges, uniform strip width, and minimal burr (max 10 microns), reducing scrap rates during downstream operations. Each coil is securely strapped and packed to prevent deformation during transit.
High Magnetic Permeability
Supports efficient flux conduction and low core losses.
Consistent Slitting Accuracy
Maintains dimensional precision to reduce processing errors during lamination.
Low Watt Loss Grades
Available in standard and high-efficiency grades like M4, M3, ZDKH, etc.
Customized Widths
Supplied as per the customer’s specific requirements for different transformer designs.
Burr-Free Edges
Clean cut finish for safer and efficient handling and assembly.
.png)
.png)
Technical Specifications
| Parameter | Details |
|---|---|
| Coil Width | 20mm – 1000mm |
| Coil Thickness | 0.23mm / 0.27mm / 0.30mm |
| Core Loss Grade | M3 / M4 / Laser Scribed / HIB Grades Available |
| Edge Condition | Burr-Free |
| Packing | Wooden Pallet / Coil Wrap / Eye to Sky |
Applications Of Slit Coil
.png)
