Step Lap Core

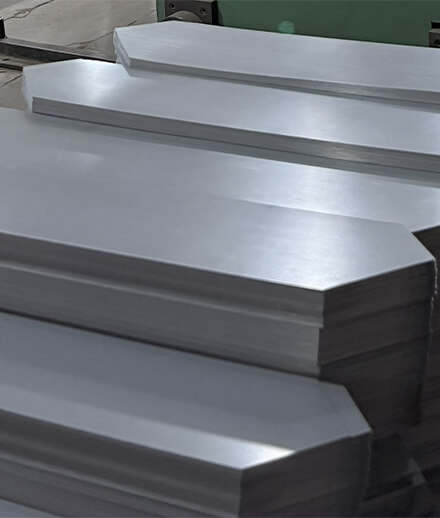

Step-lap cores are designed to enhance transformer efficiency by minimizing air gaps and core losses. Our precision-cut laminations, processed on CTL Lines, ensure superior overlapping and improved magnetic flux distribution. We also offer eco designs to convert conventional stacked core configurations into energy-efficient Step Lap Variants, enabling manufacturers to meet strict technical specifications.
Reduced No-load Losses
Step-lap design reduces eddy current and hysteresis losses for optimal performance.
High-Performance Design
Crafted using superior CRGO steel with precision burr-free CNC cutting.
Interleaved Construction
Better magnetic efficiency through tight core jointing and reduced air gaps.
Technical Specifications
| Specification | Details |
|---|---|
| Core Material | CRGO |
| Thickness | 0.23mm / 0.27mm / 0.30mm |
| Lamination Technique | CNC Step-Lap Cutting |
| Joint Type | Mitred / Butt Lap Available |
| Surface Treatment | Anti-rust Coating (on request) |
Applications Of Step Lap Core
.png)
Drop your valued inquiries at sales@katyainiproducts.com
